Building Construction 450m Rack And Pinion Elevator

Name: Building Construction 450m Rack And Pinion Elevator
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : SC200/200BD

Certification : TUV

Place of Origin : CHINA

MOQ : 1 unit

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 150 sets per month

Delivery Time : 30 days

name : Rack And Pinion Elevator

Material : Q345B steel plate

Processing Equipment : CNC machine, Robot

Design : Modular

Spare Parts : Universal and interchangeable

Usage : Building Construction

Contact Now

Building Construction 450m Rack And Pinion Elevator

Rack And Pinion Elevator Application

It is widely used in building construction, industrial and mining enterprises, multi-storey workshop, warehouse, terminal stations, construction sites as industrial and civil architecture, bridge, underground, large chimney, bridge, underground, large chimney, ship industry and so on.

Rack And Pinion Elevator Features

* Offers a multiple choice of doors or flaps.
* Adopt world famous electrical parts.
* Motors are with FC control.
* full set of safety facility, including centrifugal brake, limit switches

Rack And Pinion Elevator Production

The Q345 cool roll steel plates are cut by Laser, processed by CNC machines, welded by robots.
Main steel channel of cage frame is enlarged and thickened, which made of Q345B cool rolled steel plate.
tool fixtures.

Rack And Pinion Elevator Parameters

Technical Data	KP-B09, KP-B10
Payload Capacity	2,000 kg
Lifting Speed	0–60 m/min.
Max. Lifting Height	450 m
Cage Width (internal)	1.5 m
Cage Length (internal)	3.2 m
Cage Height (internal)	2.35 m
Motor Control	FC control
Engine Power	2x23 kw/87Hz
Gearbox	Helical reducer
Safety Device	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 phase
Type of Mast	square column 650*650 mm with bolted rack
Length Mast Section	1.508 m
Rack module	8

Building Construction 450m Rack And Pinion Elevator

Product Tags:

450m Construction Elevator

450m Building Elevator

Quality Building Construction 450m Rack And Pinion Elevator for sale

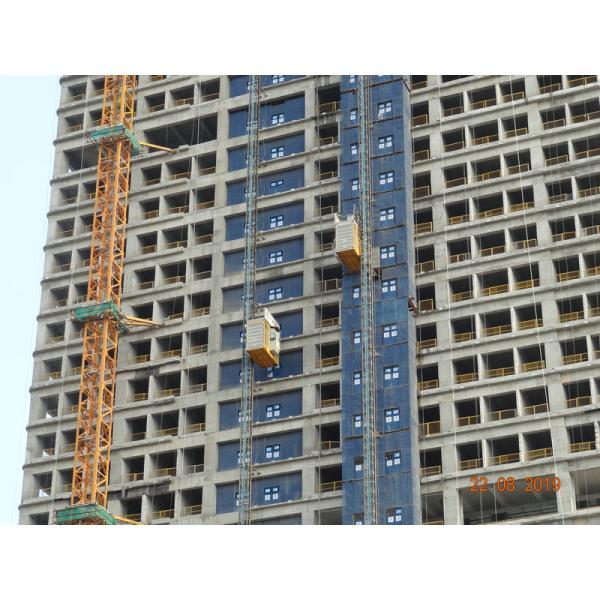

Building Construction 450m Rack And Pinion Elevator Images
