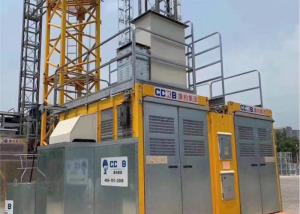

Transport People Or Goods 0–60 M/Min Construction Site Elevator
Construction Site Elevator ADVANTAGES
a. suitable for lifting various construction materials, especial for rebar and scaffolds
b. easy for install and dissemble
c. various safety devices to ensure its working safely.
d. Falling prevent protector can stop and prevent falling caused by wire rope fracture
e. equip with a lifting device, no need mobile crane when install
f. large cage size, can improve the lifting efficiency
g. seamless steel tube can ensure its high strength, good interchangeability
Construction Site Elevator Configuration
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp.
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Construction Site Elevator Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Construction Site Elevator Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Construction Site Elevator |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
