Electrical Small Crane 36 M / Min Construction Site Lift

Name: Electrical Small Crane 36 M Min Construction Site Lift
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Construction Site Lift SC200BD MP-B05 SC200-200BD MP-B06

Certification : TUV, CCC

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate in USD

Payment Terms : T/T, L/C

Delivery Time : 25-30 days

Packaging Details : Export package

Type : Construction Site Lift

Speed : 36 M/Min

Design : According to European Standard. Truly modular

Material : Q345B Steel

Production : As per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.

Color : Any color available

Contact Now

Electrical Small Crane 36 M/Min Construction Site Lift

Construction Site Lift Standard Configuration

Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.

There are two accesses for Floor Selecting and Leveling:

1. Manual Control, which is direct control by the operator.

2. Computer Automatic Positioning System (Optional for order), which can easily realize floor-selecting and leveling without manual stop or point car leveling, reducing the difficulty of manipulation, convenient and precise.

Construction Site Lift Technical Data

Item & Article No.	SC200BD, MP-B05; SC200/200BD, MP-B06 Construction Site Lift
Payload Capacity	2,000 KG per Cage
Lifting Speed	0–36 m/min.
Max. Lifting Height	450 m
Cage Size (internal)	3.2(Length)1.5(Width)2.35(Height) Meter per Cage
Cage Doors	3 doors, Entry Door + Exit Door + Side Door
Motor Control	FC (Frequency Control)
Engine Power	2x11 KW per Cage
Gearbox	Helical Gearbox
Safety Device Type	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast	Square Column 650*650 mm with Bolted Rack
Length Mast Section	1.508 m
Rack Module	8

Electrical Small Crane 36 M / Min Construction Site Lift

Product Tags:

36 M / Min Site Lift

rack and pinion lift system

Quality Electrical Small Crane 36 M / Min Construction Site Lift for sale

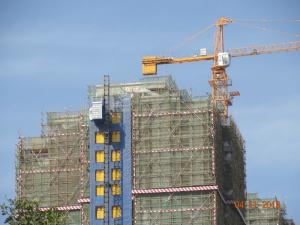

Electrical Small Crane 36 M / Min Construction Site Lift Images
